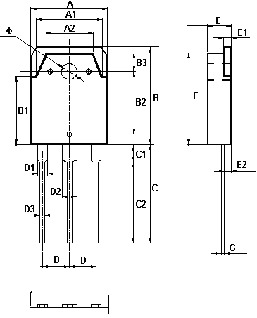

TO-3P
|
| |
 |
| Corresponding symbol |
Measurement |
| A(mm) |
15.60±0.20 |
| A1(mm) |
13.60±0.20 |
| A2(mm)dia. |
9.60±0.20 |
| B(mm) |
19.90±0.20 |
| B1(mm) |
13.90±0.20 |
| B2(mm) |
12.76±0.20 |
| B3(mm) |
3.80±0.20 |
| C(mm) |
20.00±0.30 |
| C1(mm) |
3.50±0.20 |
| C2(mm) |
16.50±0.30 |
| D(mm) |
5.45(TYP) |
| D1 |
2.0 ±0.20 |
| D2 |
3.0±0.20 |
| D3 |
1.00±0.20 |
| E(mm) |
4.80±0.20 |
| E1(mm) |
1.50± |
+0.15 |
| -0.05 |
| E2(mm) |
1.40±0.20 |
| F(mm) |
18.70±0.20 |
| G(mm) |
0.60 |
+0.15 |
| -0.05 |
| φ(mm) |
3.20±0.10 | | |
|
|
|
