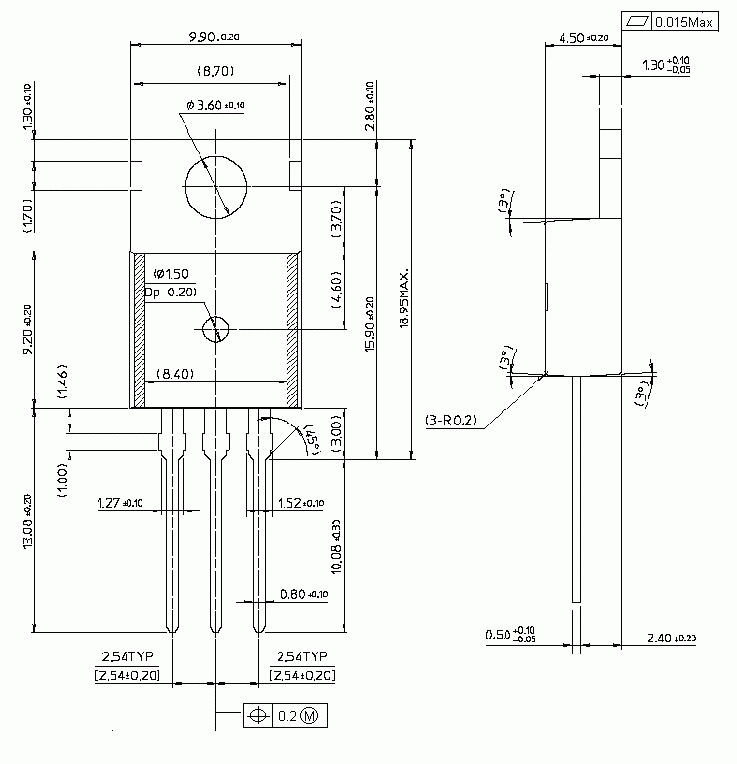

II TO-220
|
| |
 |
|
Symbol |
Dimension |
Symbol |
Dimension |
| Min |
Max |
Min |
Max |
| W |
9.70 |
10.30 |
L3 |
12.80 |
14.00 |
| W1 |
2.54 (TYP) |
L4 |
2.79 |
3.30 |
| W2 |
0.60 |
0.90 |
T |
4.30 |
4.70 |
| W3 |
1.17 |
1.37 |
T1 |
1.25 |
1.40 |
| W4 |
1.32 |
1.72 |
T2 |
2.20 |
2.60 |
|
L |
9.00 |
9.40 |
T3 |
0.45 |
0.60 |
|
L1 |
6.40 |
6.80 |
G(Φ) |
3.50 |
3.70 |
|
L2 |
2.70 |
3.00 |
|
|
|
| |
|
|
|
